Series SX602

Alphanumeric large size displays

The SX602 series comprises single line alphanumeric large size displays. With character heights up to 250 mm they are suitable for long reading distances. The LED matrix is ready for marquee, so that longer texts can also be displayed by devices with a smaller number of characters.

Eye symbol indicating reading distance

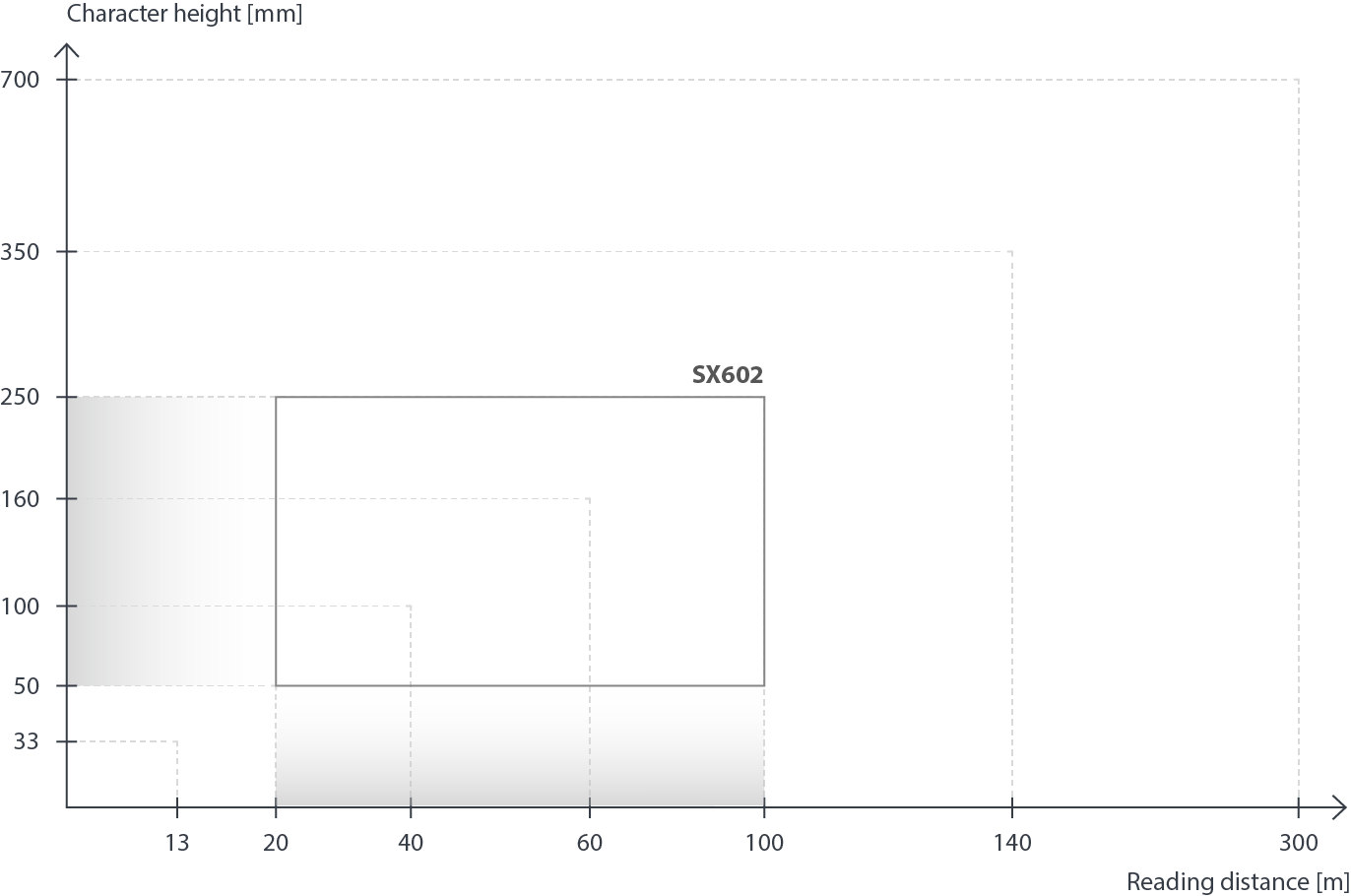

Reading distance




As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units

50 mm Character height

One-sided display

Double-sided display

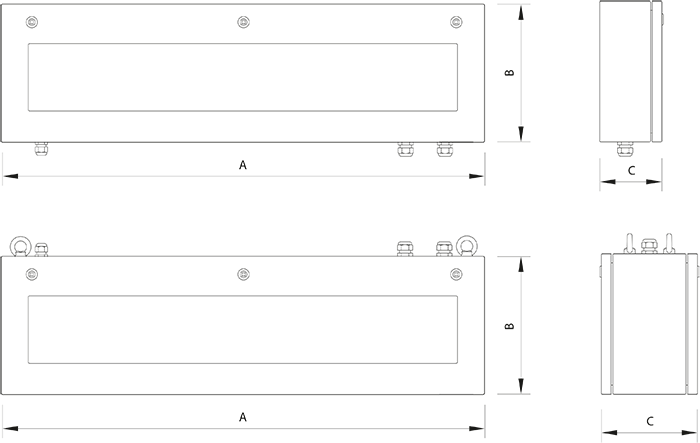

Measures A x B


20 characters1

SX602-20/05/0x100/0A-xx

SX602-20/05/0x-200/3A-xx

1040 x 250 mm


40 characters1

SX602-40/05/0x-100/0A-xx

SX602-40/05/0x-200/3A-xx

1960 x 250 mm

160 mm Character height

One-sided display

Double-sided display

Measures A x B


4 characters1

SX602-04/16/0x-100/0A-xx

SX602-04/16/0x-200/3A-xx

670 x 300 mm


6 characters1

SX602-06/16/0x-100/0A-xx

SX602-06/16/0x-200/3A-xx

960 x 300 mm


8 characters1

SX602-08/16/0x-100/0A-xx

SX602-08/16/0x-200/3A-xx

1240 x 300 mm

160 mm Character height

One-sided display

Double-sided display

Measures A x B


10 characters1

SX602-10/16/0x-100/0A-xx

SX602-10/16/0x-200/3A-xx

1520 x 300 mm


12 characters1

SX602-12/16/0x-100/0A-xx

SX602-12/16/0x-200/3A-xx

1810 x 300 mm

250 mm Character height

One-sided display

Double-sided display

Measures A x B


4 characters1

SX602-04/25/0x-100/0A-xx

SX602-04/25/0x-200/3A-xx

1030 x 400 mm


6 characters1

SX602-06/25/0x-100/0A-xx

SX602-06/25/0x-200/3A-xx

1500 x 400 mm


8 characters1

SX602-08/25/0x-100/0A-xx

SX602-08/25/0x-200/3A-xx

1960 x 400 mm

1 Applies to character set Acala 7


Subheader Icon Technical data interfaces

Data interface

Ethernet IP

Ethernet TCP/IP

Profinet

Profibus DP

Modbus RTU

Modbus TCP/IP

DeviceNet

Interbus Cu

RS485/RS232

BCD/binary

SX602-xxx/xx/xx-xxx/xx-YE

SX602-xxx/xx/xx-xxx/xx-E0

SX602-xxx/xx/xx-xxx/xx-YP

SX602-xxx/xx/xx-xxx/xx-K0

SX602-xxx/xx/xx-xxx/xx-M0

SX602-xxx/xx/xx-xxx/xx-YT

SX602-xxx/xx/xx-xxx/xx-YD

SX602-xxx/xx/xx-xxx/xx-CJ

SX602-xxx/xx/xx-xxx/xx-S0

SX602-xxx/xx/xx-xxx/xx-P0

Subheader Icon Technical data LED Colors

LED color

White

Red

Green1

Yellow1

SX602-xx/xx/xW-xxx/xx-xx

SX602-xx/xx/xR-xxx/xx-xx

SX602-xx/xx/xG-xxx/xx-xx

SX602-xx/xx/xY-xxx/xx-xx


1 Only in connection with LEDs for outdoor use

Subheader Icon Technical data Options

Options

LED for outdoor use

SX602-xxx/xx/2x-xxx/xx-xx

Housing with two-layer coating

SX602-xxx/xx/xx-x1x/xx-xx

Housing V2A (stainless steel), varnished

SX602-xxx/xx/xx-x2x/xx-xx

Housing V2A (stainless steel), brushed

SX602-xxx/xx/xx-x3x/xx-xx

Housing V4A (stainless steel), brushed

SX602-xxx/xx/xx-x5x/xx-xx

Protection type IP65

SX602-xxx/xx/xx-xx1/xx-xx

Protection type IP54 with climate control

SX602-xxx/xx/xx-xx2/xx-xx

Protection type IP54 with climate control and heating

SX602-xxx/xx/xx-xx4/xx-xx

Protective weather cover

SX602-xxx/xx/xx-xxx/xx-xx-1011

Subheader Icon Technical data

Technical data

Power supply

230 V AC ±15 %, 50 Hz, optional 24 V DC ±15 % or 115 V AC ±15 %, 60 Hz

Housing

Steel sheet, optional stainless steel,
varnishing RAL 5002 ultramarine blue/RAL 7035 light grey

Protection class

IP54, optional IP65

Detailed technical data see operating instructions.
