Series P76

Push-button switches

Coding switches of any number of characters can be combined with the modules of the P76 series. Dual push actuation - large easily legible digits – block mounting via integrated clamping pins – optionally with decoupling diodes.


Standard units

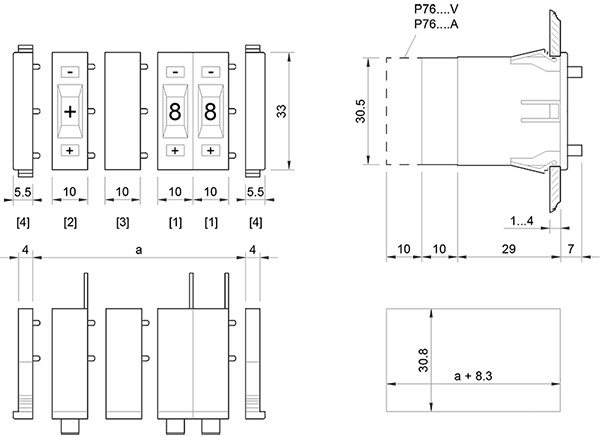

Panel cutout

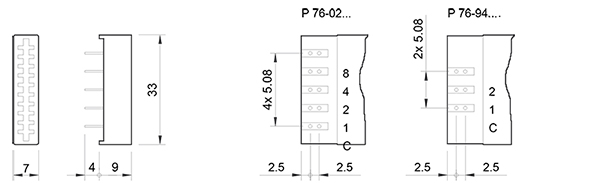

Dimensions in mm

[1]

[1]

[1]

[2]

[2]

[2]

[3]

[4]

[5]

P76-02

P76-02V

P76-02A

P76-94

P76-94V

P76-94A

P76-00

P76-99

P76-CP05

Coding switch

Coding switch

Coding switch

Coding switch

Coding switch

Coding switch

Spacer

End bracket

Connector

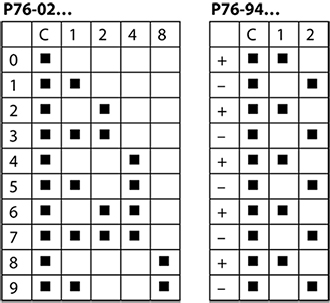

BCD-Code, positions 0...9

BCD-Code, positions 0...9, extended PC Board

BCD-Code, positions 0...9, extended PC Board
with diodes 1N4148 or similar (common anode)

Polarity, positions +/–

Polarity, positions +/–, extended PC Board

Polarity, positions +/–, extended PC Board,
with diodes 1N4148 or similar (common anode)

Connector [5]

Technical data

Electrical rating (resistive load):

0,1 A, 50 V AC, 28 V DC

Maximum current (non switching):

1 A

Contact resistence:

max. 0,2 Ω

Isolation resistence:

103 MΩ

Dielectric strenght:

500 V

Lifetime (electrical rating)

200.000 switch operations

Operating temperature:

-20...65 °C

Housing:

Thermoplast, Black
