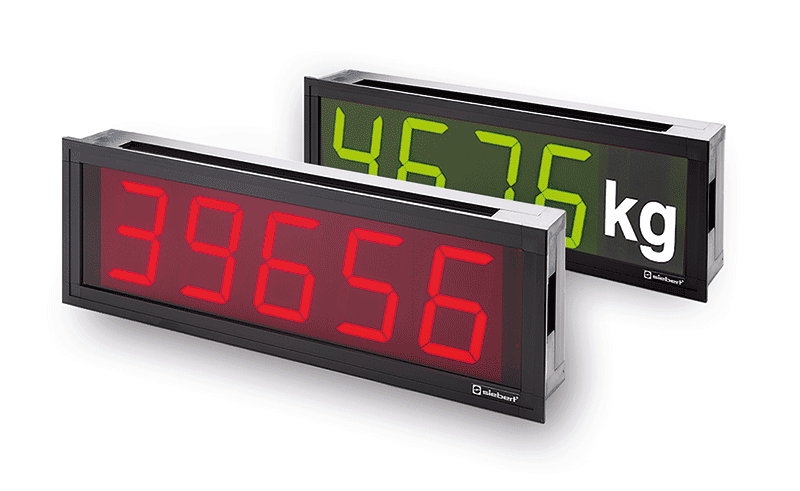

Series S202 Profinet

Panel mount displays

The digitals displays of the S202 series are designed for installation in front panels or for switch panel mounting. With character heights of 57 mm for the numeric versions they are also well readable from further distances.

S202 Profinet

Comfortable parameterization

The displays are fully parameterized with an engineering framework, for example Totally Integrated Automation (TIA) Siemens portal. This permits the parameterization even in build-in condition.

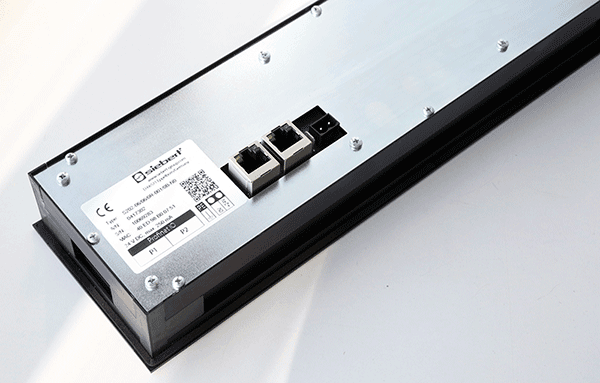

Integrated switch

The devices have two RJ45 sockets and an integrated IRT-ready switch in accordance with the conformance class CC-C.


Integrated Switch

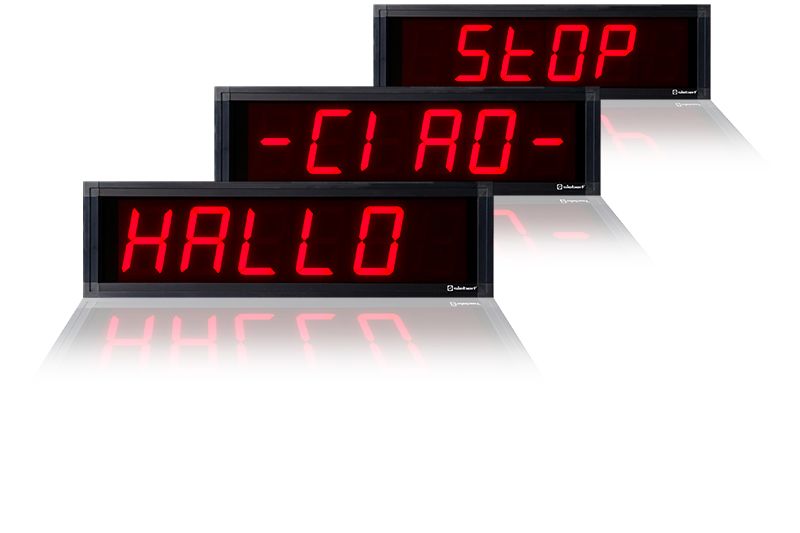

Extended character set

Among the digits the character set also contains letters and special characters which can be displayed with a 7- segment matrix.


Extended Character set

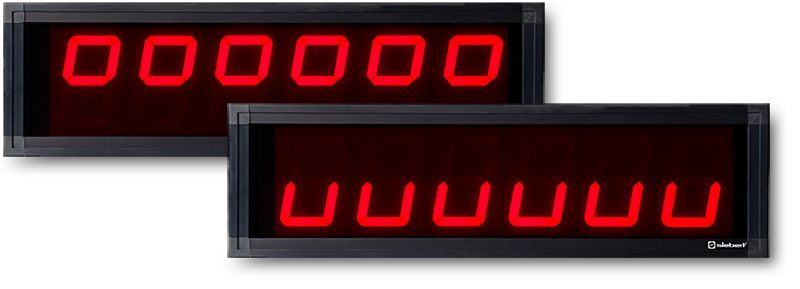

Display overflow and underflow

If the display receives values which can not be displayed the following signs appear in the display.


Overflow / Underflow

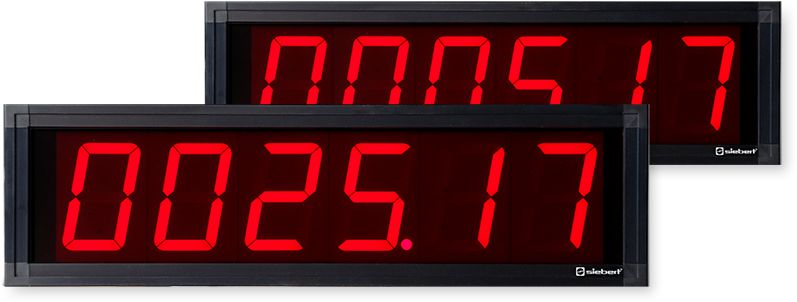

Leading zeros

The numbers of the leading zeros can be set individually.


Leading zeros

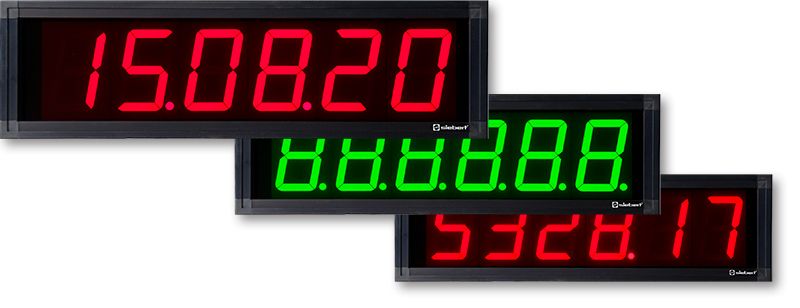

Smart-Dot-Function

If the Smart-Dot-Function is activated the display moves the decimal point automatically, so that the value before decimal point is automatically displayed. The decimal places are either truncated or rounded.
To display a date or a code several decimal points can be displayed also.


Smart dot

Different presentational attribute

Values can be displays left-justified or right-justified. There are also different flashing modes to choose.

An automatic change in presentation is possible as well as when exceeding two threshold values or when falling below two threshold values. If for example the limit value is exceeded the value is flashing in the display. When the value returns to a value within the threshold the value shines permanently on the display again.

Unit conversion function

A formula, which can be stored in the display, allows the displaying of values in other measuring units, for example degrees Fahrenheit in degrees Celsius or kilograms to tons.

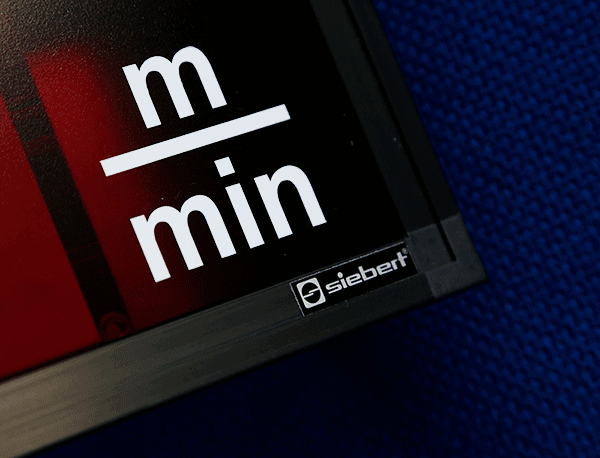

Dimension symbols

Many dimension symbols are available. See Technical data for table.
