Series S202 Profinet

Panel mount displays

The digitals displays of the S202 series are designed for installation in front panels or for switch panel mounting. With character heights of 57 mm for the numeric versions they are also well readable from further distances.


Standard units Series S202

57 mm Character height

Type designation

Measures A x B


2 Digits

S202-02/06/0R-001/0B-xx

144 x 96 mm


3 Digits

S202-03/06/0x-001/0B-xx

192 x 96 mm


4 Digits

S202-04/06/0x-001/0B-xx

240 x 96 mm

57 mm Character height

Type designation

Measures A x B


5 Digits

S202-05/06/0x-001/0B-xx

288 x 96 mm


6 Digits

S202-06/06/0x-001/0B-xx

336 x 96 mm

With dimension symbols

57 mm Character height

Type designation

Measures A x B


2 Digits + dimension1

S202-F2/06/0R-001/0B-xx

192 x 96 mm


3 Digits + dimension1

S202-F3/06/0x-001/0B-xx

240 x 96 mm


4 Digits + dimension1

S202-F4/06/0x-001/0B-xx

288 x 96 mm

57 mm Character height

Type designation

Measures A x B


5 Digits + dimension1

S202-F5/06/0x-001/0B-xx

336 x 96 mm


6 Digits + dimension1

S202-F6/06/0x-001/0B-xx

384 x 96 mm

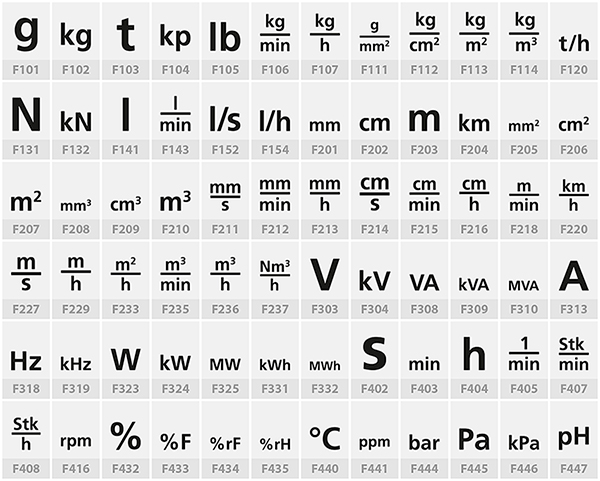

1 Dimension symbols see table below

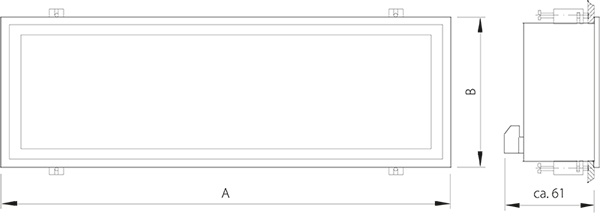

Dimensions in mm

Dimension characters


Data interface

Profinet

S202-xx/xx/xx-xxx/xx-N0


LED color

Red

Green

S202-xx/xx/xR-xxx/xx-xx

S202-xx/xx/xG-xxx/xx-xx

Subheader Icon Technical data

Technical data

Power supply

24 V DC ±15 %, reverse polarity protected, galvanically isolated

Protection class

IP65 front-sided

Connecting technology

2 x RJ45 sockets,
PROFINET Conformance Class CC-B

Detailed technical data see operating instructions.
