Series SX502

Alphanumeric large size displays

Presentation of information over long distances, visualization of process data, operator guidance in plain language - these are typical applications for the alphanumeric large size displays of the SX502 series. A wide range of types with character heights from 33 up to 120 mm is available, from compact two-lined versions up to large-scale boards. Technical perfection and innovative details are features of the SX502 series.

Eye symbol indicating reading distance

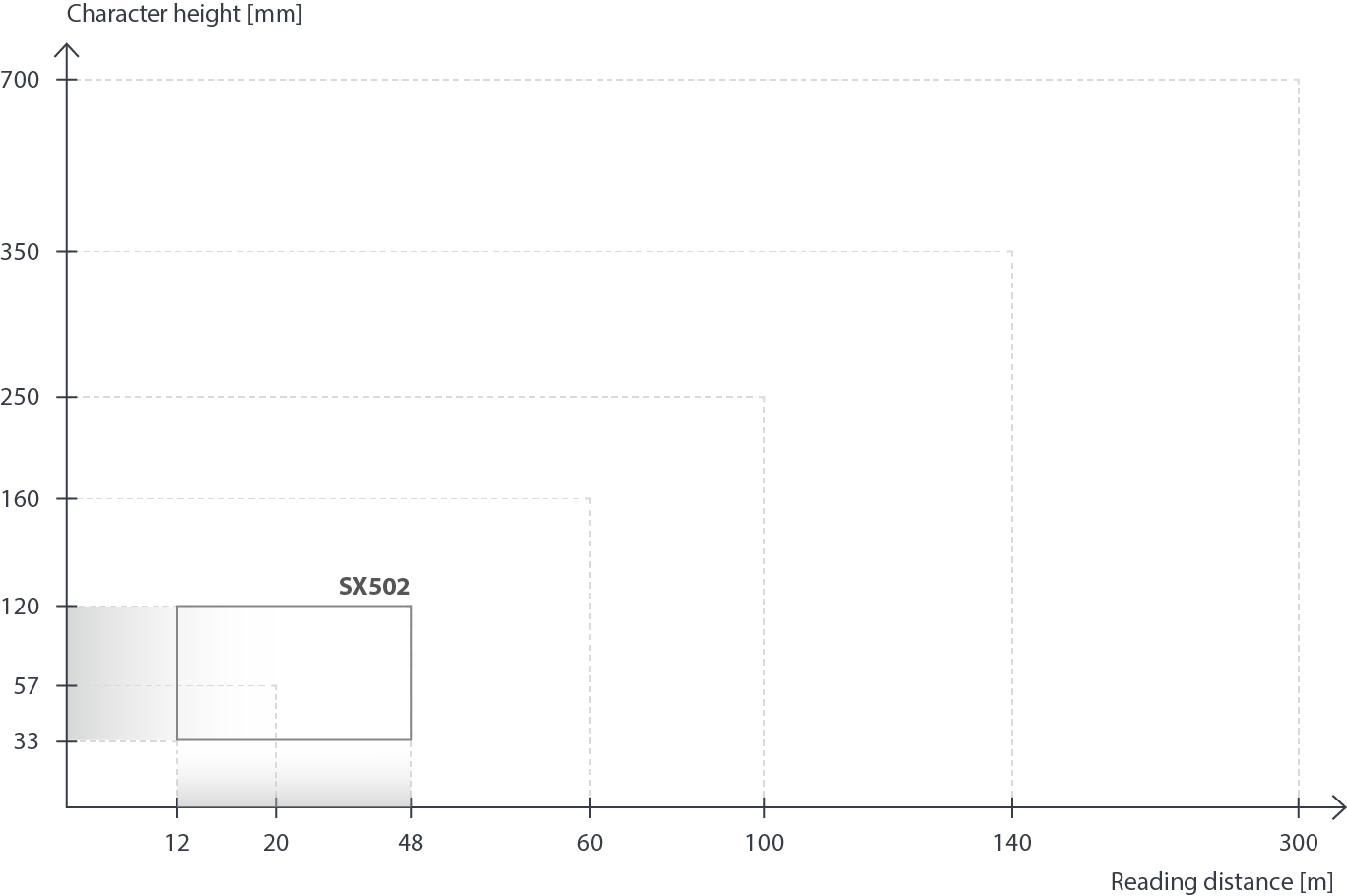

Reading distance




As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units


Character height

33/66/75 mm




One-sided display

Double-sided display

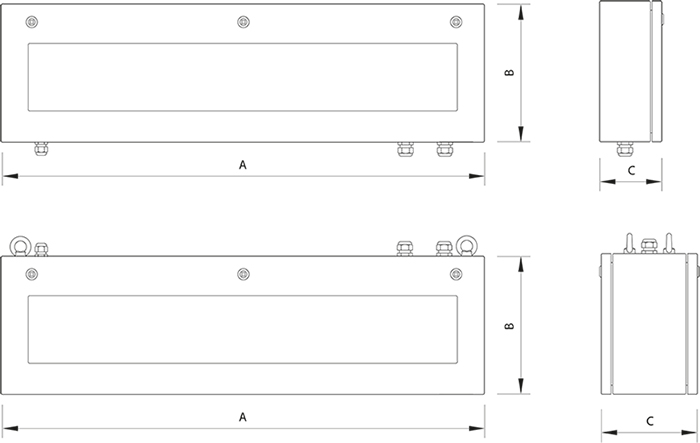

Measures A x B x C


2 x 20 characters1

SX502-220/03/0x-100/0A-xx

SX502-220/03/0x-200/3A-xx

700 x 210 x 130 (240)2 mm


2 x 40 characters1

SX502-240/03/0x-100/0A-xx

SX502-240/03/0x-200/3A-xx3

1270 x 300 x 130 (240)2 mm

50/100/120 mm

One-sided display

Double-sided display

Measures A x B x C

SX502-220/05/0x-100/0A-xx

SX502-220/05/0x-200/3A-xx

1040 x 250 x 130 (210)2 mm

SX502-240/05/0x-100/0A-xx

SX502-240/05/0x-200/3A-xx

1960 x 250 x 130 (210)2 mm




Character height

33/66/75 mm




One-sided display

Double-sided display

Measures A x B x C


4 x 20 characters1

SX502-420/03/0x-100/0A-xx

SX502-420/03/0x-200/3A-xx3

700 x 300 x 130 (240)2 mm


4 x 40 characters1

SX502-440/03/0x-100/0A-xx3

SX502-440/03/0x-200/3A-xx4

1270 x 300 x 130 (240)2 mm

50/100/120 mm

One-sided display

Double-sided display

Measures A x B x C

SX502-420/05/0x-100/0A-xx

SX502-420/05/0x-200/3A-xx3

1040 x 390 x 130 (210)2 mm

SX502-440/05/0x-100/0A-xx

SX502-440/05/0x-200/3A-xx3

1960 x 390 x 130 (210)2 mm


Character height

33/66/75 mm




One-sided display

Double-sided display

Measures A x B x C


6 x 20 characters1

SX502-620/03/0x-100/0A-xx3

SX502-620/03/0x-200/3A-xx4

700 x 380 x 130 (240)2 mm


6 x 40 characters1

SX502-640/03/0x-100/0A-xx3

SX502-640/03/0x-200/3A-xx4

1270 x 380 x 130 (240)2 mm

50/100/120 mm

One-sided display

Double-sided display

Measures A x B x C

SX502-620/05/0x-100/0A-xx

SX502-620/05/0x-200/3A-xx3

1040 x 530 x 130 (210)2 mm

SX502-640/05/0x-100/5A-xx3

SX502-640/05/0x-200/3A-xx3

2020 x 710 x 170 (270)2 mm


Character height

33/66/75 mm




One-sided display

Double-sided display

Measures A x B x C


8 x 20 characters1

SX502-820/03/0x-100/0A-xx3

SX502-820/03/0x-200/3A-xx4

720 x 490 x 130 (240)2 mm


8 x 40 characters1

SX502-840/03/0x-100/0A-xx3

SX502-840/03/0x-200/3A-xx4

1290 x 490 x 130 (240)2 mm

50/100/120 mm

One-sided display

Double-sided display

Measures A x B x C

SX502-820/05/0x-100/0A-xx3

SX502-820/05/0x-200/3A-xx3

1060 x 680 x 130 (210)2 mm

SX502-840/05/0x-100/5A-xx3

SX502-840/05/0x-200/3A-xx3

2020 x 850 x 170 (300)2 mm


1 Applies to character set Acala 7
2 Applies to units with double-sided display

3 Forced ventilated in connection with color-switchable LEDs
4 Forced ventilated



Subheader Icon Technical data interfaces

Data interface

Ethernet IP

Ethernet TCP/IP

Profinet

Profibus DP

Modbus RTU

Modbus TCP/IP

Interbus Cu

RS485/RS232

BCD/binary

SX502-xxx/xx/xx-xxx/xx-YE

SX502-xxx/xx/xx-xxx/xx-E0

SX502-xxx/xx/xx-xxx/xx-YP

SX502-xxx/xx/xx-xxx/xx-K0

SX502-xxx/xx/xx-xxx/xx-CM

SX502-xxx/xx/xx-xxx/xx-YT

SX502-xxx/xx/xx-xxx/xx-CJ

SX502-xxx/xx/xx-xxx/xx-S0

SX502-xxx/xx/xx-xxx/xx-P0

Subheader Icon Technical data LED Colors

LED color

White

Red

Red/green/yellow1

Red/yellow/green2

Green3

Yellow3

SX502-xx/xx/xW-xxx/xx-xx

SX502-xx/xx/xR-xxx/xx-xx

SX502-xx/xx/xM-xxx/xx-xx

SX502-xx/xx/xN-xxx/xx-xx

SX502-xx/xx/xG-xxx/xx-xx

SX502-xx/xx/xY-xxx/xx-xx


1 Switchable, only in connection with LEDs for indoor use and character height 50 mm
2 Switchable, with increased luminosity, only in connection with LEDs for indoor use and character height 50 mm
3 Only in connection with LEDs for outdoor use

Subheader Icon Technical data Options

Options

LED for outdoor use

SX502-xxx/xx/2x-xxx/xx-xx

Housing with two-layer coating

SX502-xxx/xx/xx-x1x/xx-xx

Housing V2A (stainless steel), varnished

SX502-xxx/xx/xx-x2x/xx-xx

Housing V2A (stainless steel), brushed

SX502-xxx/xx/xx-x3x/xx-xx

Housing V4A (stainless steel), brushed

SX502-xxx/xx/xx-x5x/xx-xx

Protection type IP65

SX502-xxx/xx/xx-xx1/xx-xx

Protection type IP54 with climate control

SX502-xxx/xx/xx-xx2/xx-xx

Protection type IP54 with climate control and heating

SX502-xxx/xx/xx-xx4/xx-xx

Protective weather cover

SX502-xxx/xx/xx-xxx/xx-xx-1011

Subheader Icon Technical data

Technical data

Power supply

230 V AC ±15 %, 50 Hz, optional 24 V DC ±15 % or 115 V AC ±15 %, 60 Hz

Housing

Steel sheet, optional stainless steel,
varnishing RAL 5002 ultramarine blue/RAL 7035 light grey

Protection class

IP54, optional IP65

Detailed technical data see operating instructions.
