Series SX502

Alphanumeric large size displays

Presentation of information over long distances, visualization of process data, operator guidance in plain language - these are typical applications for the alphanumeric large size displays of the SX502 series. A wide range of types with character heights from 33 up to 120 mm is available, from compact two-lined versions up to large-scale boards. Technical perfection and innovative details are features of the SX502 series.


Stainless steel housings


Acoustical or optical signalers


Special designs


Wall or ceiling mounting


Equipment for outdoor use


High Brightness LEDs


Components and system solutions


Design housings

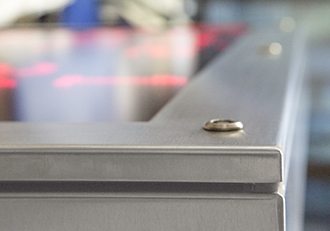

Stainless steel housings

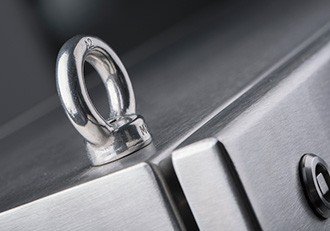

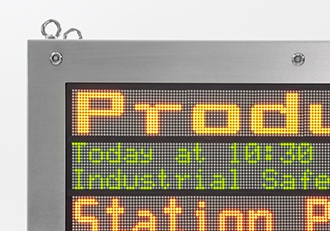

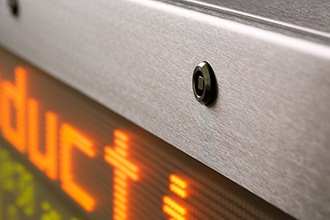

The powder-coated steel sheet housings are characterized by their good corrosion protection and their weather resistance. For special demands on the surface finish the housings can be made of stainless steel.

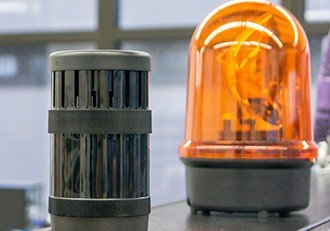

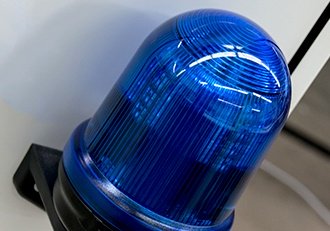

Acoustical or optical signalers

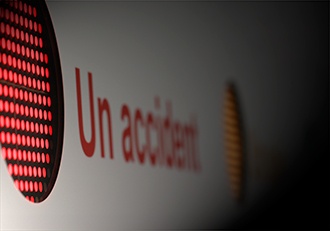

To draw the attention to the change of information on the display the large size displays can be equipped with a horn or an all around light.

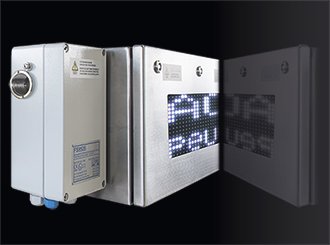

Special designs

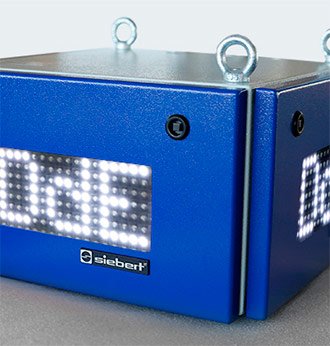

As standard large size displays readable from one side or two sides are offered. Optionally devices readable from three and four sides are deliverable.

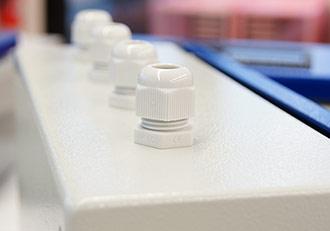

Wall or ceiling mounting

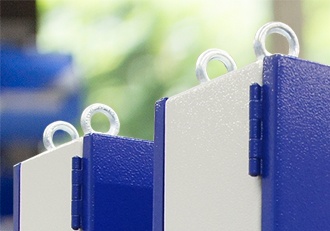

The large size displays are made for wall mounting. Displays readable from two sides are made for pendant mounting. They dispose of eyelets and the cable entry is done from the top of the housing. The displays readable from one side can be delivered in pendant mounting version optionally.

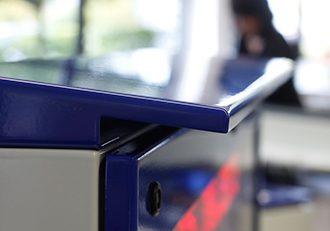

Equipment for outdoor use

For outdoor use a weather cover is available. An optional temperature controlled heater avoids the formation of condensation water in the unit. For hot climate zones air conditioning units for cooling are available.

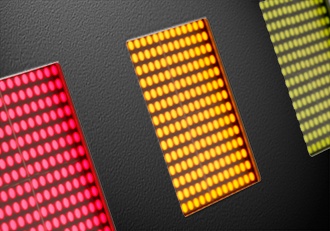

High Brightness LEDs

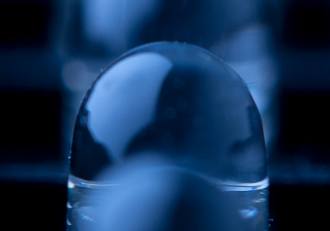

The LED display is characterized by high luminosity and a large reading angle. For outdoor use the devices are available with especially bright shining High Brightness LEDs. With a day/night switching the brightness can be reduced again.

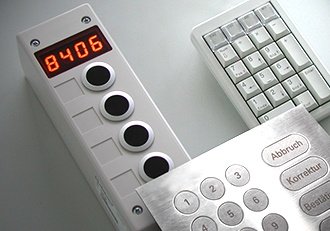

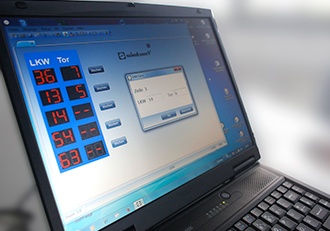

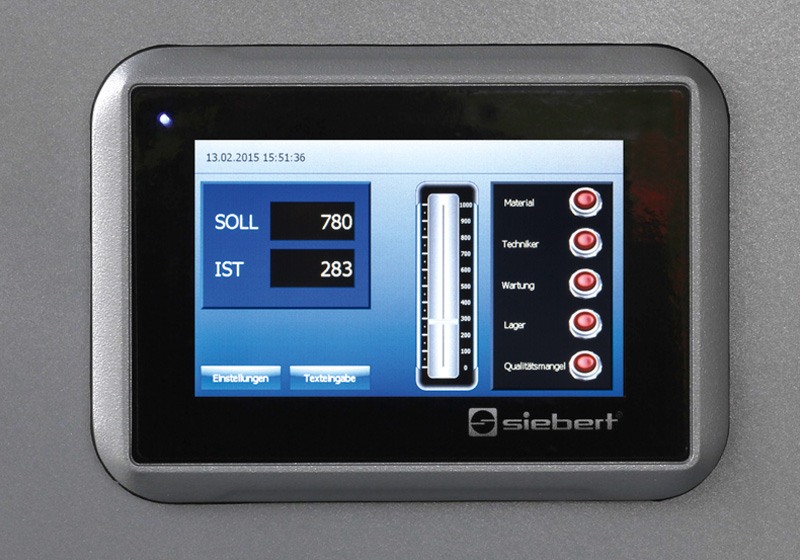

Components and system solutions

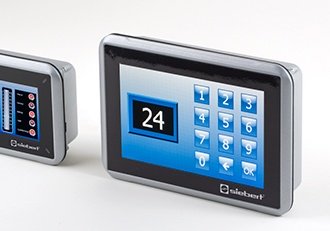

Touch panels and PC software for data input, probe systems for Andon boards, etc., complete the product range.

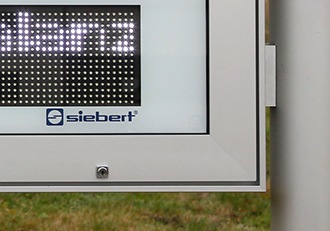

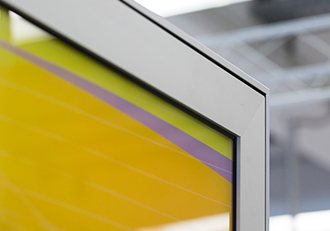

Design housings

The large size displays are designed for industrial applications and they are characterized by a professional industrial design. For other fi elds of applications such as building technology or tertiary sectors housings with an appropriate design are off ered.
