Series SX302 Profinet

Alphanumeric large size displays for Profinet

The SX302 series comprises alphanumeric large size displays with character heights of 50 or 100 mm. They are suitable to display short information such as article number, registration number, etc.

Eye symbol indicating reading distance

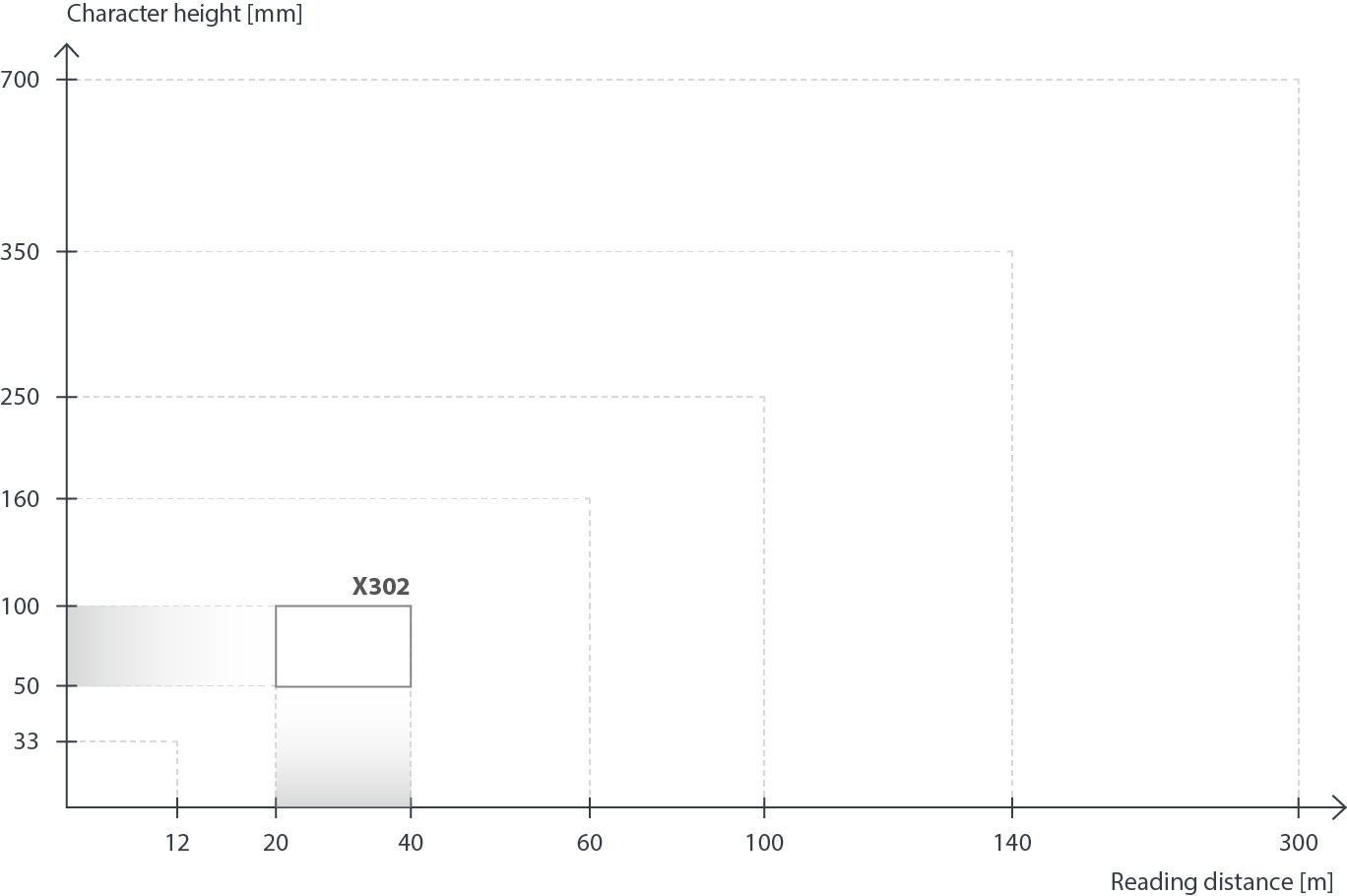

Reading distance




As a guideline for the maximum reading distance under good conditions:
Character height [mm] x 0.4 = reading distance [m].


For example a character height of 100 mm results in a reading distance of up to 40 m. The character height should not be chosen too small, especially outdoors where the size is subjectively felt smaller.


Standard units


Character height

50 mm

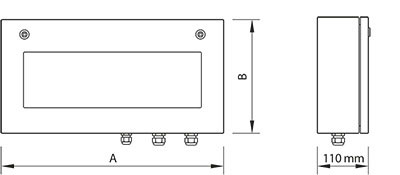

One-sided display

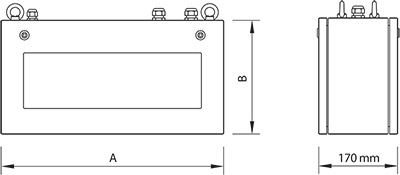

Double-sided display

Measures A x B


1 characters

—

—

—


2 characters

SX302-02/05/0x-100/0A-N0

SX302-02/05/0x-200/3A-N0

300 x 185 mm


3 characters

SX302-03/05/0x-100/0A-N0

SX302-03/05/0x-200/3A-N0

3001 x 185 mm


4 characters

SX302-04/05/0x-100/0A-N0

SX302-04/05/0x-200/3A-N0

3001 x 185 mm

100 mm

One-sided display

Double-sided display

Measures A x B

SX302-01/10/0x-100/0A-N0

SX302-01/10/0x-200/3A-N0

330 x 245 mm

SX302-02/10/0x-100/0A-N0

SX302-02/10/0x-200/3A-N0

330 x 245 mm

SX302-03/10/0x-100/0A-N0

SX302-03/10/0x-200/3A-N0

480 x 245 mm

SX302-04/10/0x-100/0A-N0

SX302-04/10/0x-200/3A-N0

480 x 245 mm


Character height

50 mm




One-sided display

Double-sided display

Measures A x B


5 characters

SX302-05/05/0x-100/0A-N0

SX302-05/05/0x-200/3A-N0

400 x 185 mm


6 characters

SX302-06/05/0x-100/0A-N0

SX302-06/05/0x-200/3A-N0

400 x 185 mm


7 characters

SX302-07/05/0x-100/0A-N0

SX302-07/05/0x-200/3A-N0

510 x 185 mm


8 characters

SX302-08/05/0x-100/0A-N0

SX302-08/05/0x-200/3A-N0

510 x 185 mm

100 mm

One-sided display

Double-sided display

Measures A x B

SX302-05/10/0x-100/0A-N0

SX302-05/10/0x-200/3A-N0

680 x 245 mm

SX302-06/10/0x-100/0A-N0

SX302-06/10/0x-200/3A-N0

680 x 245 mm

SX302-07/10/0x-100/0A-N0

SX302-07/10/0x-200/3A-N0

870 x 245 mm

SX302-08/10/0x-100/0A-N0

SX302-08/10/0x-200/3A-N0

870 x 245 mm


Unilaterally readable


Two-sided readable


LED color

Red

Green

SX302 Profinet-xxx/xx/xR-xxx/xx-xx

SX302 Profinet-xxx/xx/xG-xxx/xx-xx

Subheader Icon Technical data Options

Options

Housing with two-layer coating

SX302-xxx/xx/xx-x1x/xx-xx

Housing V2A (stainless steel), varnished

SX302-xxx/xx/xx-x2x/xx-xx

Housing V2A (stainless steel), brushed

SX302-xxx/xx/xx-x3x/xx-xx

Housing V4A (stainless steel), brushed

SX302-xxx/xx/xx-x5x/xx-xx

Protection type IP65

SX302-xxx/xx/xx-xx1/xx-xx

Protection type IP54 with climate control

SX302-xxx/xx/xx-xx2/xx-xx

Protection type IP54 with climate control and heating

SX302-xxx/xx/xx-xx4/xx-xx

Protective weather cover

SX302-xxx/xx/xx-xxx/xx-xx-1011

Power supply 24 V DC

SX302-xxx/xx/xx-xxx/xB-xx

Subheader Icon Technical data

Technical data

Power supply

230 V AC ±15 %, 50 Hz, optional 24 V DC ±15 % or 115 V AC ±15 %, 60 Hz

Housing

Steel sheet, optional stainless steel,
varnishing RAL 5002 ultramarine blue/RAL 7035 light grey

Protection class

IP54, optional IP65

Detailed technical data see operating instructions.
