Series S302 Weighing technology

Large size displays for weighing technology

The large size displays for weighing technology are special versions of the S302 series. They have a four or five digit LED display with 57, 100, 160 or 250 mm high digits as well as a dimension symbol in film lettering or LED technology. The LED version shows the values g, kg, t or lb. Devices with status indicators to show the symbols -0-, PT, NET and T are also offered.


Units with film dimension symbols


Character height

57 mm




Type designation

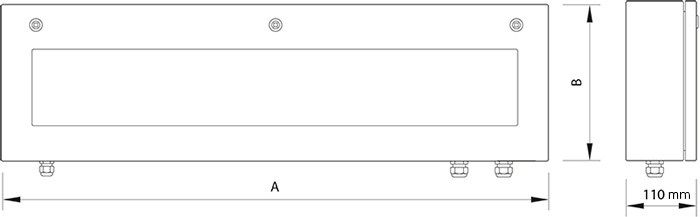

Measures A x B


4 Digits + dimension

S302-F4/06/0R-100/0A-xx

400 x 185 mm


5 Digits + dimension

S302-F5/06/0R-100/0A-xx

400 x 185 mm

100 mm

Type designation

Measures A x B

S302-F4/10/0R-100/0A-xx

680 x 245 mm

S302-F5/10/0R-100/0A-xx

680 x 245 mm

160 mm

Type designation

Measures A x B

S302-F4/16/0R-100/0A-xx

980 x 300 mm

S302-F5/16/0R-100/0A-xx

960 x 300 mm

250 mm

Type designation

Measures A x B

S302-F4/25/0R-100/0A-xx

1500 x 400 mm

S302-F5/25/0R-100/0A-xx

1500 x 400 mm


Units with LED dimension symbols


Character height

57 mm




Type designation

Measures A x B


4 Digits + dimension

S302-K4/06/0R-100/0A-xx

400 x 185 mm


5 Digits + dimension

S302-K5/06/0R-100/0A-xx

400 x 185 mm

100 mm

Type designation

Measures A x B

S302-K4/10/0R-100/0A-xx

680 x 245 mm

S302-K5/10/0R-100/0A-xx

680 x 245 mm

160 mm

Type designation

Measures A x B

S302-K4/16/0R-100/0A-xx

980 x 300 mm

S302-K5/16/0R-100/0A-xx

960 x 300 mm

250 mm

Type designation

Measures A x B

S302-K4/25/0R-100/0A-xx

1500 x 400 mm

S302-K5/25/0R-100/0A-xx

1500 x 400 mm


Units with LED dimension symbols and status indicator


Character height

57 mm




Type designation

Measures A x B


5 Digits + dimension + Status

S302-W5/06/0R-100/0A-xx

510 x 185 mm

100 mm

Type designation

Measures A x B

S302-W5/10/0R-100/0A-xx

870 x 245 mm

160 mm

Type designation

Measures A x B

S302-W5/16/0R-100/0A-xx

1100 x 300 mm

250 mm

Type designation

Measures A x B

S302-W5/25/0R-100/0A-xx

1730 x 400 mm


Manufacturer-specific data interface

S302-xx/xx/xx-xxx/xx-xR

S302-xx/xx/xx-xxx/xx-xZ

S302-xx/xx/xx-xxx/xx-xT

S302-xx/xx/xx-xxx/xx-xL

S302-xx/xx/xx-xxx/xx-xE

S302-xx/xx/xx-xxx/xx-xP

S302-xx/xx/xx-xxx/xx-xC

S302-xx/xx/xx-xxx/xx-xM

Arpège

Bizerba

Mettler-Toledo

Phoenix Contact

Precia-Molen

Sartorius

Schenck

Siemens Siwarex


Manufacturer-independent data interface

S302-xx/xx/xx-xxx/xx-S0

S302-xx/xx/xx-xxx/xx-T0

RS485/RS232

TTY 20mA/RS232


LED color

Red, further colors on request

Subheader Icon Technical data Options

Options

LED for outdoor use

S302 Weighing technology-xxx/xx/2x-xxx/xx-xx

Housing with two-layer coating

S302 Weighing technology-xxx/xx/xx-x1x/xx-xx

Housing V2A (stainless steel), varnished

S302 Weighing technology-xxx/xx/xx-x2x/xx-xx

Housing V2A (stainless steel), brushed

S302 Weighing technology-xxx/xx/xx-x3x/xx-xx

Housing V4A (stainless steel), brushed

S302 Weighing technology-xxx/xx/xx-x5x/xx-xx

Protection type IP65

S302 Weighing technology-xxx/xx/xx-xx1/xx-xx

Protection type IP54 with climate control

S302 Weighing technology-xxx/xx/xx-xx2/xx-xx

Protection type IP54 with climate control and heating

S302 Weighing technology-xxx/xx/xx-xx4/xx-xx

Protective weather cover

S302 Weighing technology-xxx/xx/xx-xxx/xx-xx-1011

Subheader Icon Technical data

Technical data

Power supply

230 V AC ±15 %, 50 Hz, optional 24 V DC ±15 % or 115 V AC ±15 %, 60 Hz

Housing

Steel sheet, optional stainless steel,
varnishing RAL 5002 ultramarine blue/RAL 7035 light grey

Protection class

IP54, optional IP65

Detailed technical data see operating instructions.
