Series S302 Weighing technology

Large size displays for weighing technology

The large size displays for weighing technology are special versions of the S302 series. They have a four or five digit LED display with 57, 100, 160 or 250 mm high digits as well as a dimension symbol in film lettering or LED technology. The LED version shows the values g, kg, t or lb. Devices with status indicators to show the symbols -0-, PT, NET and T are also offered.


Stainless steel housings


Acoustical or optical signalers


Special designs


Wall or ceiling mounting


Equipment for outdoor use


High Brightness LEDs


Components and system solutions



Stainless steel housings

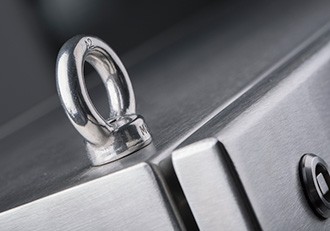

The powder-coated steel sheet housings are characterized by their good corrosion protection and their weather resistance. For special demands on the surface finish the housings can be made of stainless steel.

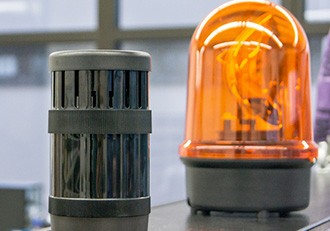

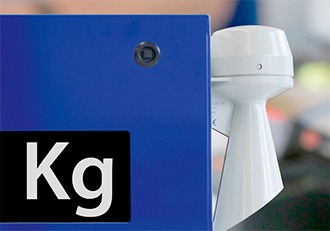

Acoustical or optical signalers

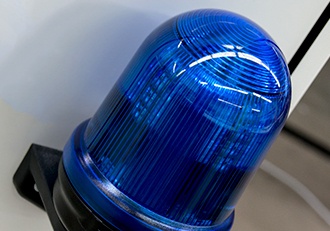

To draw the attention to the change of information on the display the large size displays can be equipped with a horn or an all around light.


Special designs

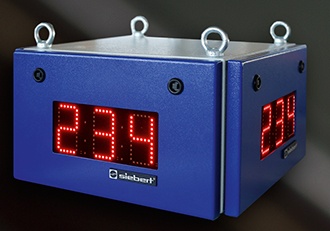

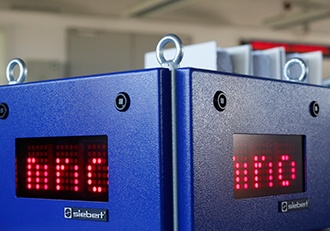

As standard large size displays readable from one side or two sides are offered. Optionally devices readable from three and four sides are deliverable.


Wall or ceiling mounting

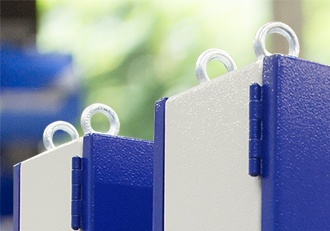

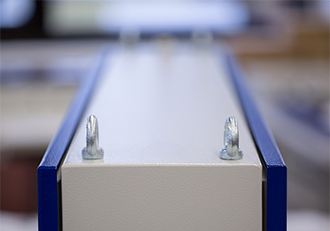

The large size displays are made for wall mounting. Displays readable from two sides are made for pendant mounting. They dispose of eyelets and the cable entry is done from the top of the housing. The displays readable from one side can be delivered in pendant mounting version optionally.

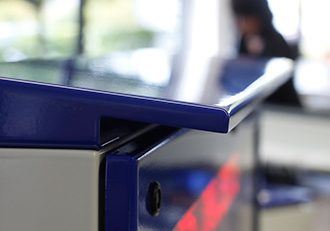

Equipment for outdoor use

For outdoor use a weather cover is available. An optional temperature controlled heater avoids the formation of condensation water in the unit. For hot climate zones air conditioning units for cooling are available.

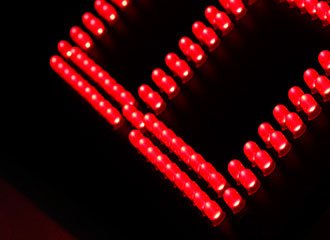

High Brightness LEDs

The LED display is characterized by high luminosity and a large reading angle. For outdoor use the devices are available with especially bright shining High Brightness LEDs. With a day/night switching the brightness can be reduced again.


Components and system solutions

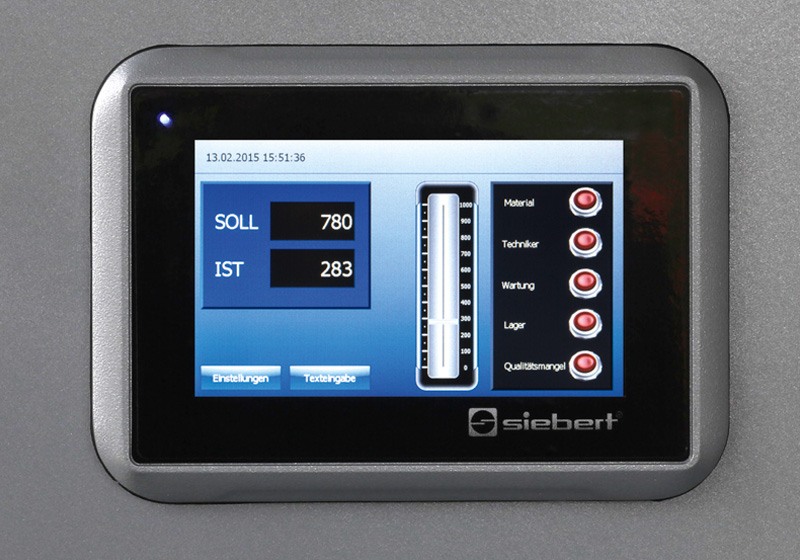

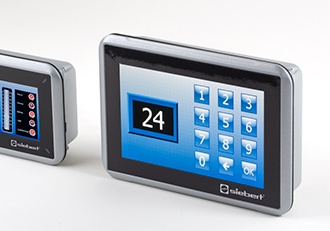

Touch panels and PC software for data input, probe systems for Andon boards, etc., complete the product range.
