Series S102 Profinet

Digital displays for Profinet

The digital displays of the S102 series are compact devices for installation in front panels or for switch panel mounting. The character height is 14 or 25 mm. They are available as four-, five- or six-digit displays.


Standard units Series S102 Profinet

14 mm Character height

Type designation

Dimensional drawing


4 Digits

S102-04/14/0x-000/0B-N0

A


6 Digits

S102-06/14/0x-000/0B-N0

B

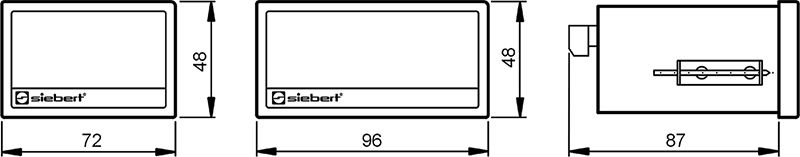

Dimensional drawing A

Dimensional drawing B



Dimensions in mm




25 mm Character height

Type designation

Dimensional drawing


4 Digits

S102-04/25/0x-001/0B-N0

C


5 Digits

S102-05/25/0x-001/0B-N0

C

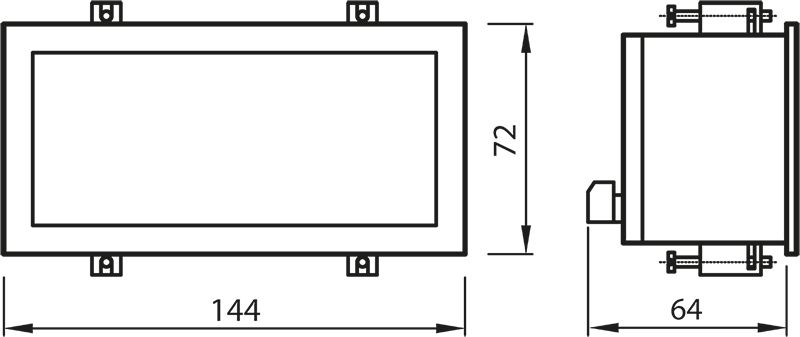

Dimensional drawing C



Dimensions in mm




Dimension symbols


LED color

Red

Green

S102-xx/xx/xR-xxx/xx-xx

S102-xx/xx/xG-xxx/xx-xx


Options

Protection type IP65

S102 Profinet-xx/xx/xx-xx1/xx-xx

Dimension characters

S102 Profinet-Fx/xx/xx-xxx/xx-xx

Subheader Icon Technical data

Technical data

Power supply

24 V DC ±15 %, reverse polarity protected, galvanically isolated

Protection class

IP40 front-sided, optional IP65

Connecting technology

2 x RJ45 sockets,
PROFINET Conformance Class CC-B

Detailed technical data see operating instructions.
