Designed for professional applications the type spectrum ranges from compact digital displays to widely visible large size display systems. The individual series are based on common platforms so that the control for all series is nearly the same – an advantage for the project planner.

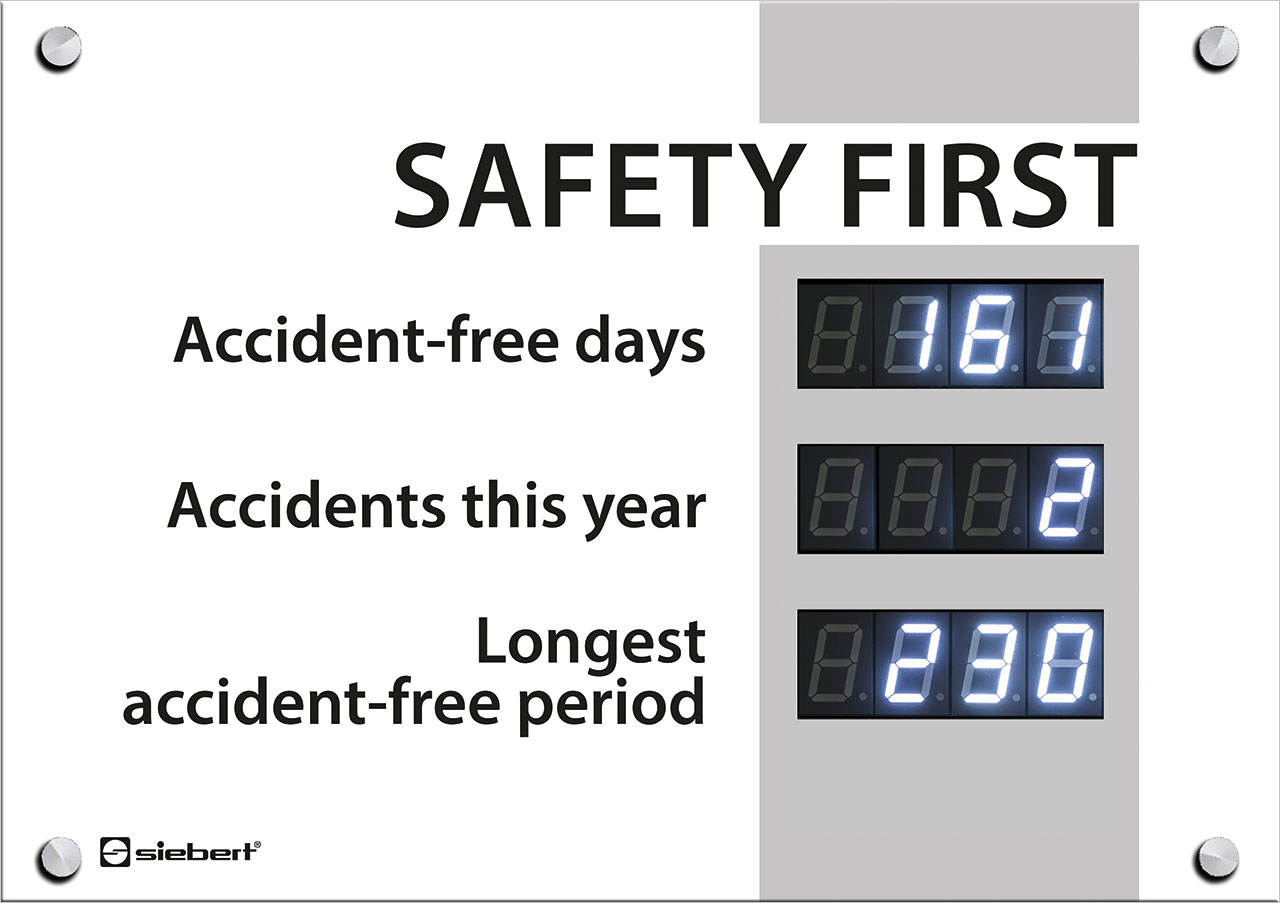

Series XC610 covers compact displays with a high demand on design. Their frameless glass front, combined with stainless steel accents and innovative design predestine them for use in architecturally demanding environments.

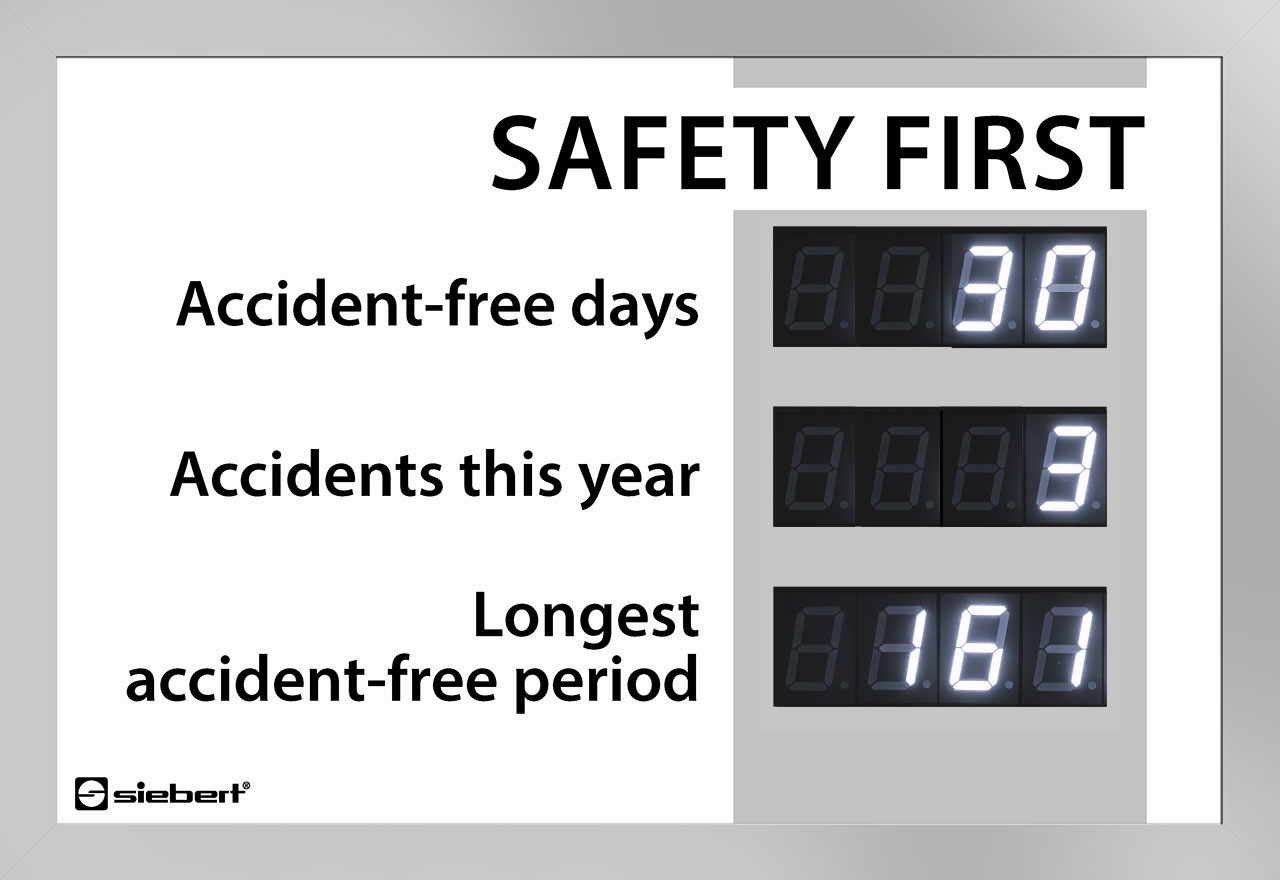

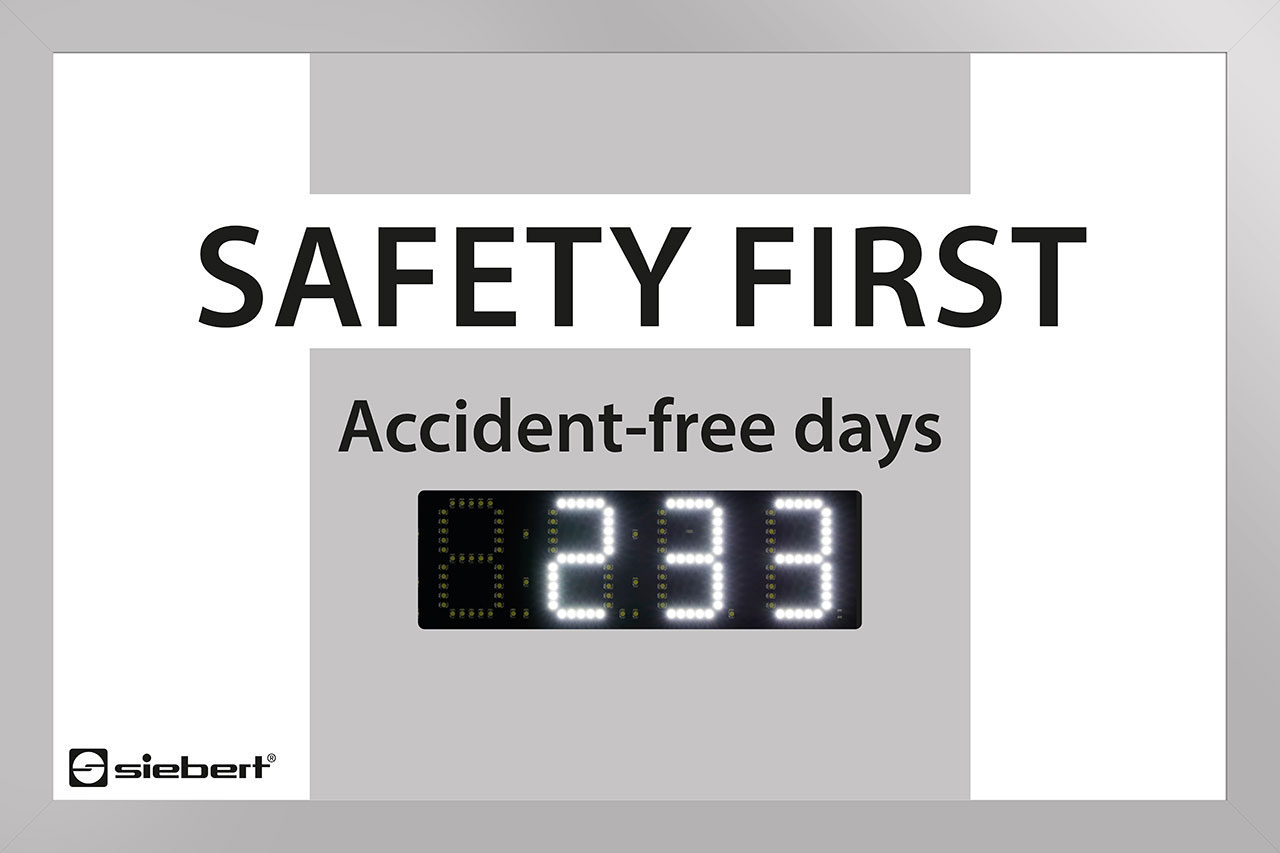

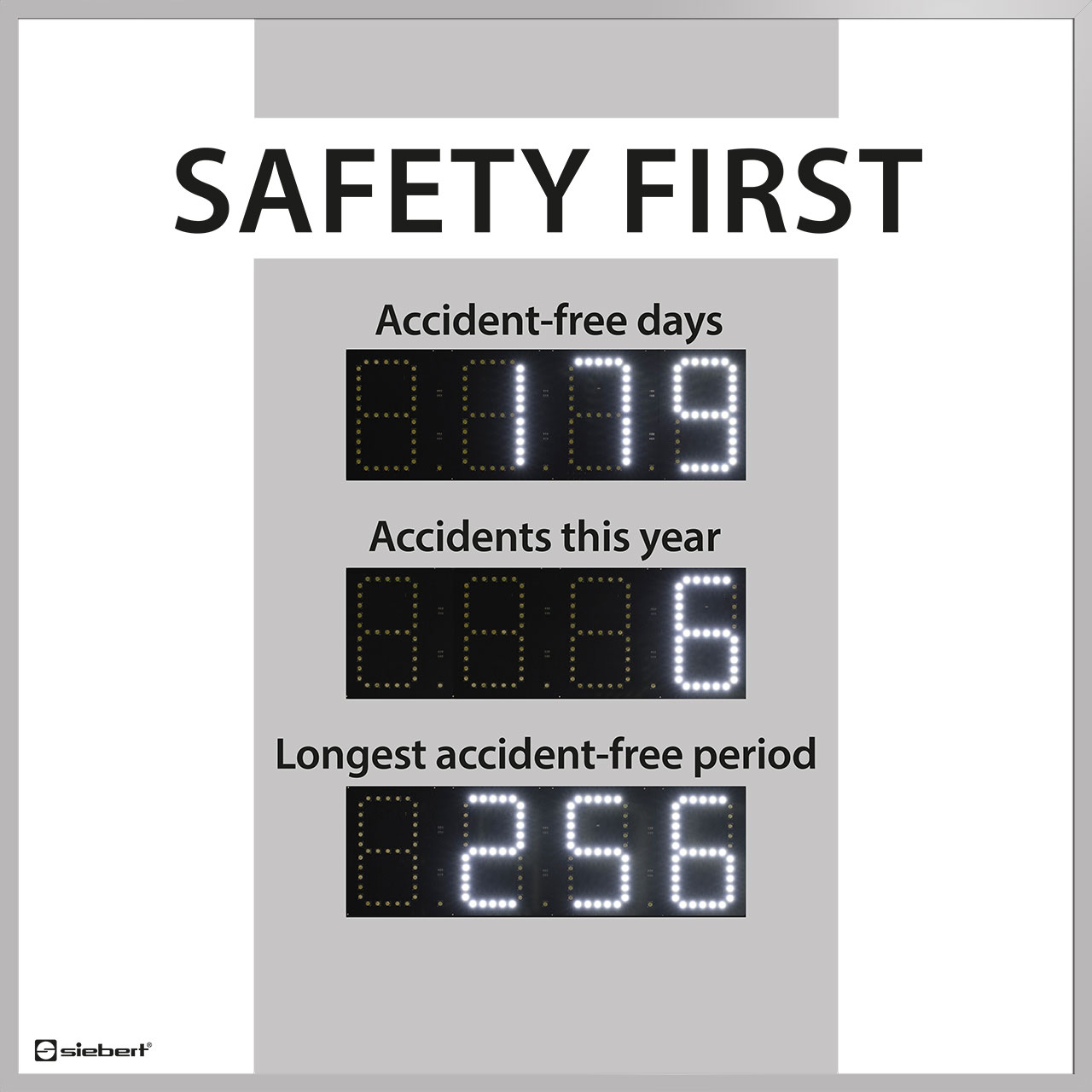

Series XC620, XC630, XC640, XC650 and XC680 are equipped with elegant aluminum profile housings and cover the range from compact displays up to large boards with representative character. With their exclusive design, they arouse the viewer’s interest and effectively communicate your commitment to work safety.

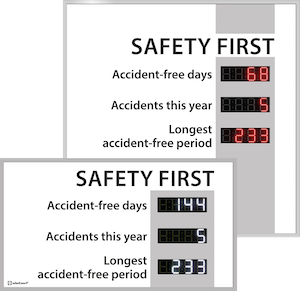

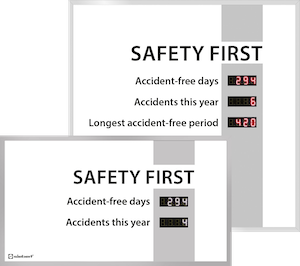

Series XC640 and XC650 are offered as «Linea» in horizontal format or as «Quadro» in square format. The square format with its large surface is ideal for individual graphics with representative effect and distinctive advertising effect.

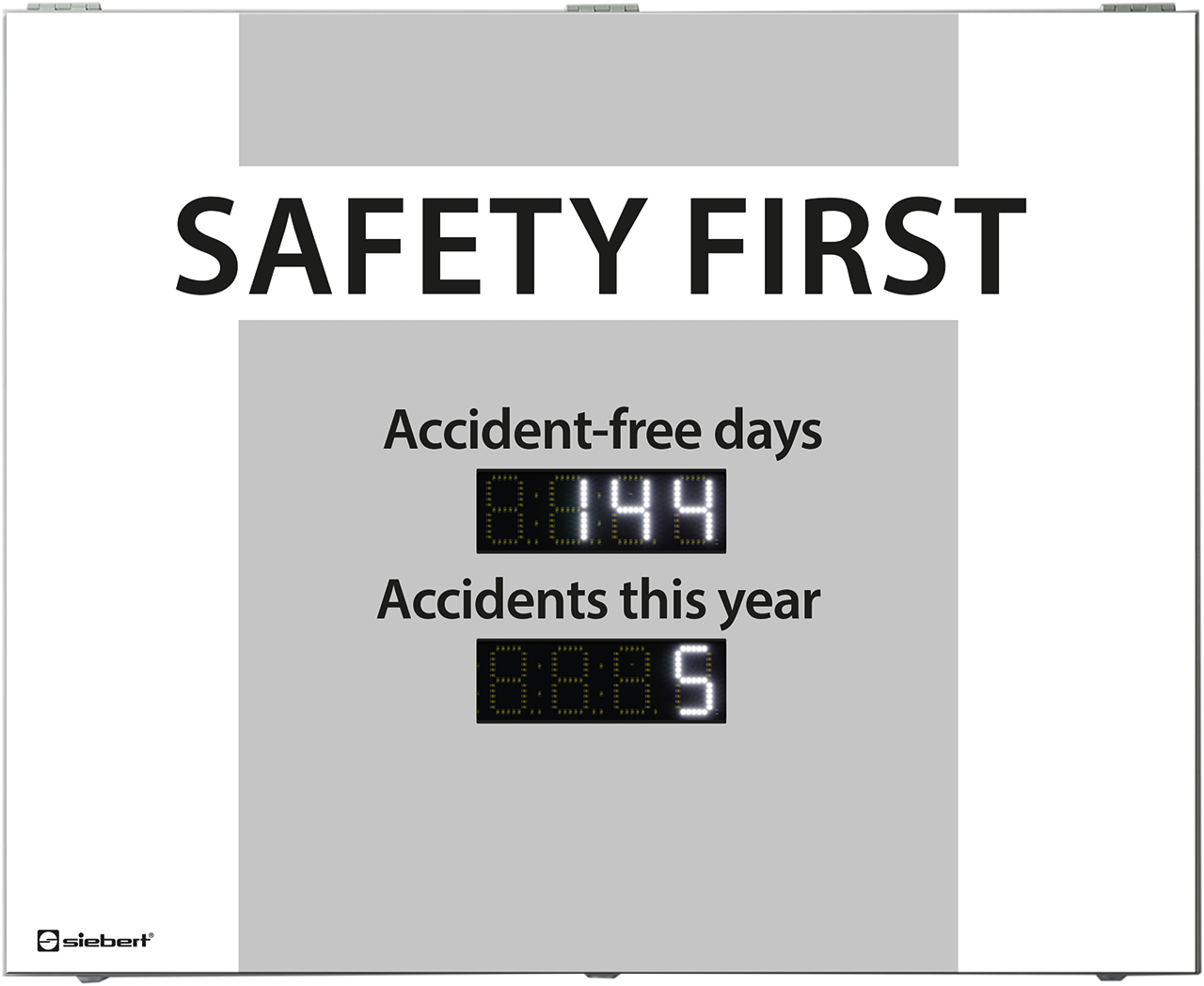

Series XC670 is equipped with robust steel sheet housings. This series is suitable for public areas or harsh environment where external influences on the display are to be expected

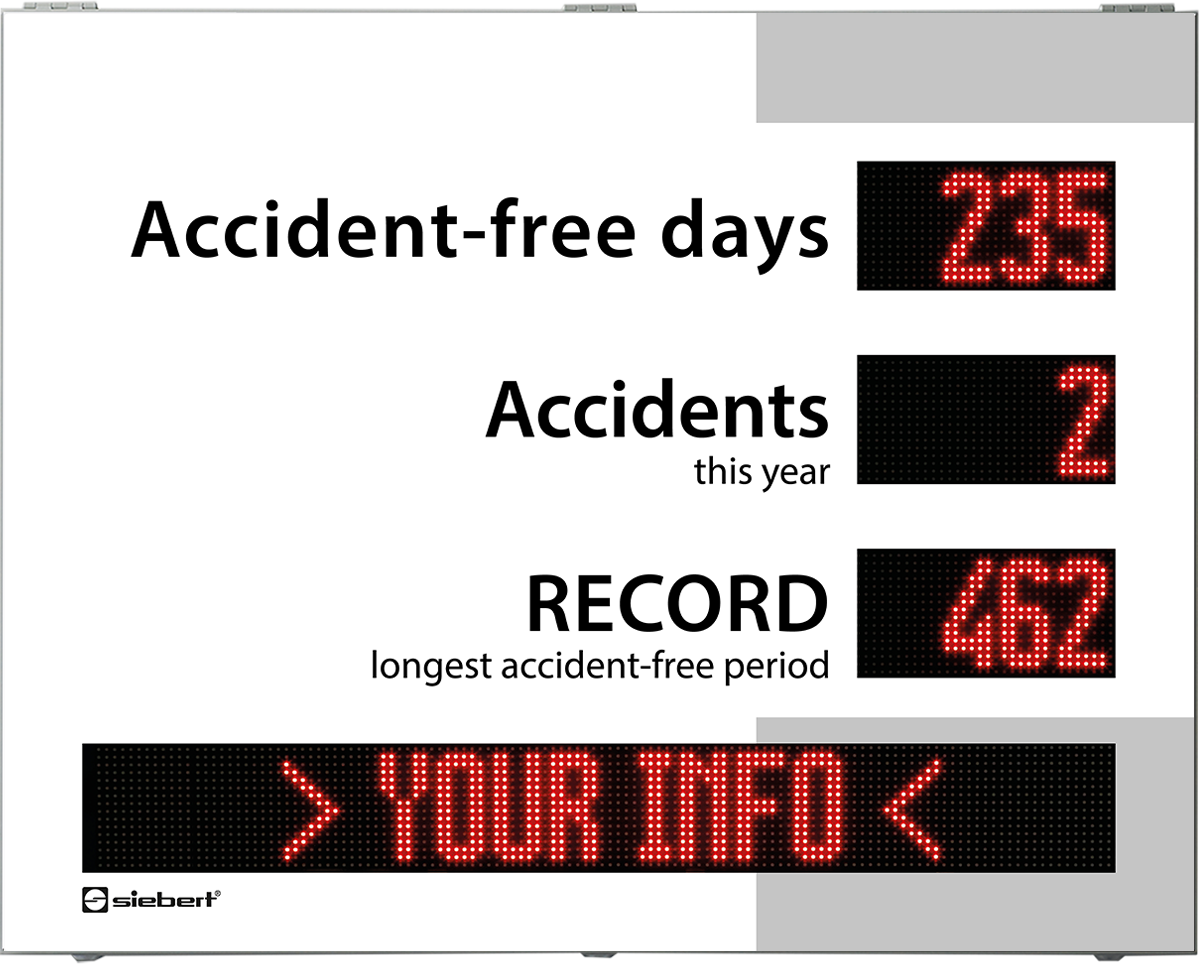

The XC695 series visualizes the number of accident-free days and, depending on the version, also other key figures of the operational accident statistics. In addition to that, it features a text display that enables further functionalities. For example, you can display current or individual information on the text display, such as:
Series |
XC610 |
XC620 |
XC630 |
---|---|---|---|
Width x height x depth | 420 x 297 x 33 420 x 297 x 41¹ |
400 x 280 x 62 | 600 x 400 x 62 |
Display type | Frameless / extremely flat | Compact | Compact |
Housing | Front: glass/stainless steel Body: sheet steel |
Front: acrylic glass Body: aluminum |
Front: acrylic glass Body: aluminum |
Brilliant led display | |||
Individual design | |||
Real glass front | - | - | |
Number of lines | 1, 2 or 3 | 1, 2 or 3 | 1 |
Number of digits per line | 4 | 4 | 4 |
Height of LED digits | Small (25 mm) | Small (25 mm) | Medium (55 mm) |
Reading distance | max. 10 m | max. 10 m | max. 20 m |
Area of application | Indoor | Indoor, Outdoor | Indoor, Outdoor |
Protection type | IP30 | IP40, IP54⁴ | IP40, IP54⁴ |
Automatic brightness control | ⁶ | ⁶ | ⁶ |
Weight | approx. 4 kg | approx. 3 kg | approx. 4 kg |
Power consumption | max. 25 W | max. 25 W | max. 25 W |
Available interfaces | USB-C, Ethernet TCP/IP, IR remote control |
Series |
XC640 |
XC650 |
XC670 |
|
---|---|---|---|---|
Dimensions in mm | 800 x450 x 62² 800 x 800 x 62³ |
1000 x 560 x 62² 1000 x 1000 x 62³ |
1000 x 800 x 70 | |
Display type | Large | Large | Large | |
Housing | Front: acrylic glass Body: aluminum |
Front: acrylic glass Body: aluminum |
Front: steel sheet Body: steel sheet |
|
Brilliant led display | ||||
Individual design | ||||
Especially robust | - | - | ||
Number of lines | 2 or 3 | 2 or 3 | 2 or 3 | |
Number of digits per line | 4 | 4 | 4 | |
Height of LED digits | Small (25 mm) | Medium (55 mm) | Medium (55 mm) | |
Reading distance | max. 10 m | max. 20 m | max. 20 m | |
Area of application | Indoor, Outdoor | Indoor, Outdoor | Indoor, Outdoor | |
Protection type | IP40, IP54⁴ | IP40, IP54⁴ | IP40, IP54⁴ | |
Automatic brightness control | ⁶ | ⁶ | ⁶ | |
Weight | approx. 7 kg² approx. 11 kg³ |
approx. 11 kg² approx. 18 kg³ |
approx. 32 kg | |
Power consumption | max. 25 W | max. 50 W | max. 50 W | |
Available interfaces | USB-C, Ethernet TCP/IP, IR remote control |
Series |
XC680 |
XC695 |
---|---|---|
Dimensions in mm | 1000 x 1000 x 62 | 1180 x 930 x 110 mm 1180 x 985 x 140 mm5 |
Display type | Large | Large |
Housing | Front: acrylic glass Body: aluminum |
Front: steel sheet Body: steel sheet |
Brilliant led display | ||
Individual design | ||
Especially robust | - | |
Number of lines | 1, 2 or 3 | 1, 2 or 3 |
Number of digits per line | 4 | 4 |
Height of LED digits | Large (100 mm) | Large (55 - 110 mm) |
Reading distance | max. 40 m | max. 50 m |
Additional text display | - | |
Area of application | Indoor, Outdoor | Indoor, Outdoor |
Protection type | IP40, IP54⁴ | IP54 |
Automatic brightness control | ⁶ | |
Weight | approx. 18 kg | approx. 52 kg |
Power consumption | max. 75 W | max. 200 W |
Available interfaces | USB-C, Ethernet TCP/IP, IR remote control | Ethernet TCP/IP, WLAN IEEE 802.11 b/g/n |
1 Displays with Ethernet interface |
3 Format Quadro |
5 With weather protection cover |
||
2 Format Linea |
4 For outdoor devices |
6 Does not apply to devices with IR remote control. |
